Pre-stressed concrete wire EN 10138
High tensile steel wire according to EN 10138-2-2006 is developed for use throughout the construction industry for various pre-stressed concrete elements: flooring, bridges, concrete pipes, railway sleepers, panels, piling and posts and ground anchors.
Strict raw material selection and highly controlled processing guarantee high control of product quality, high control of tensile strength, and design for purpose.

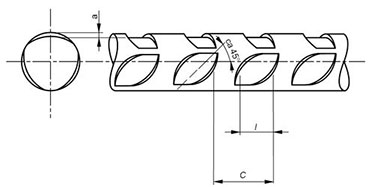

| Diameter, mm |
Range of nominal depth of indentation, mm |
Depth tolerance on chosen nominal depth, mm |
Length, mm l |
Spacing, mm С |
Tensile strength, N/mm2 |
Weight, g/m |
Breaking load, kN |
|---|---|---|---|---|---|---|---|
| 5.0 | 0.06 – 0.13 | ± 0.03 | 3.5 ± 0.5 | 5.5 ± 0.5 | 1770 | 153.1 | 34.7 |
| 6.0 | 0.09 – 0.16 | ± 0.04 | 5.0 ± 0.5 | 8.0 ± 0.5 | 1670 | 221.0 | 47.3 |
| 7.0 | 300.7 | 64.3 |
| Type | Weight, kg | Internal diameter, mm |
|---|---|---|
| Coils | Up to 2000 | 1400 |
